ICU/CCU/HDU Equipment
Patient Monitor
- 10.4-inch touch screen/Non Touch

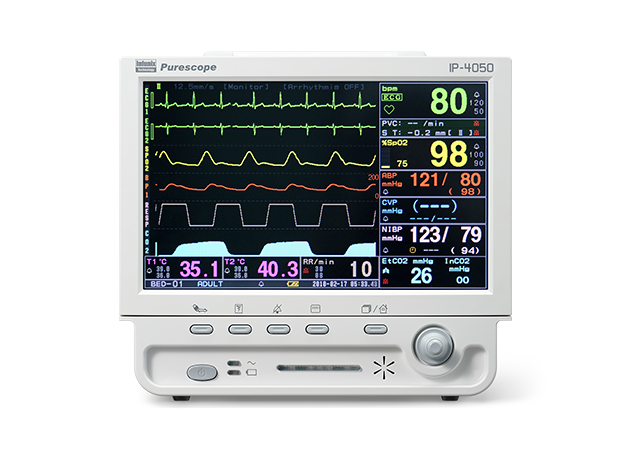

- The system displays 7 parameters and 6 waveforms on a 10.4-inch wide screen (800x480). Each waveform is presented in high-resolution images with clear, identifiable colors, enhancing user comfort with TFT color and an intuitive user interface.
Price
Call for Price
Contact us for latest pricing and bulk discounts.
Key Features:
Display: 10.4-inch widescreen (16:9) TFT color LCD with an ultra-wide viewing angle, capable of displaying up to six waveforms simultaneously.

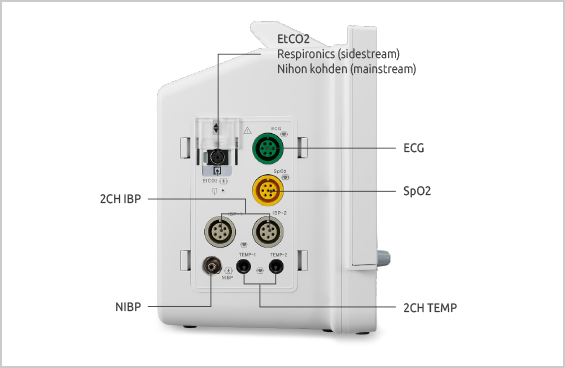

Monitoring Parameters:
ECG (Electrocardiogram) – 3/5-lead ECG monitoring with detection of 12 types of arrhythmias.
SpO₂ (Oxygen Saturation) – Measures blood oxygen levels with high precision.
NIBP (Non-Invasive Blood Pressure) – Automated Oscillo metric method for accurate blood pressure readings.
IBP (Invasive Blood Pressure, 2 channels) – For direct arterial and venous pressure measurement.
Respiration (RESP) – Derived from the ECG leads to detect respiratory rate.
Temperature (2 channels) – Dual temperature probes for continuous body temperature monitoring.
EtCO₂ (End-Tidal Carbon Dioxide, optional) – Capnography monitoring via side stream module.
Alarm System: Visual and audible alarms for critical parameter deviations.
Arrhythmia Detection: Detects 12 types of arrhythmias, displays premature ventricular contractions (PVC) count, and monitors ST-segment levels for cardiac conditions.
User Interface: Intuitive and user-friendly menu with touchscreen or button navigation for easy operation.
Printing: Optional built-in thermal printer for real-time waveform and trend reports.

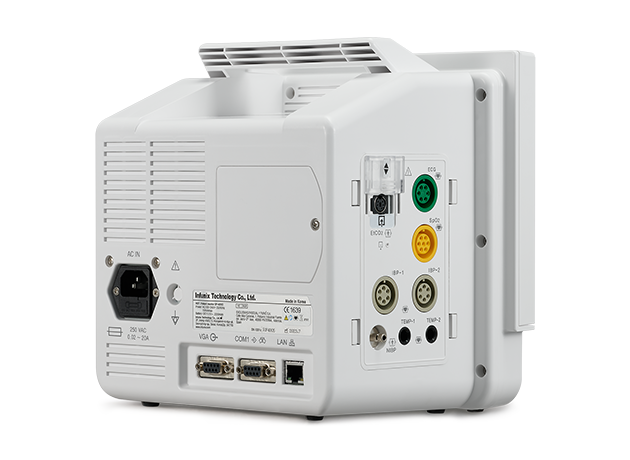

Connectivity: Multiple connectivity options, including USB, LAN, and Wi-Fi (optional) for data transfer and integration with hospital networks.
Battery Backup: Rechargeable lithium-ion battery with approximately 3 hours of continuous operation on a full charge.
Applications
Hospital Wards & ICUs – Continuous vital sign monitoring for critical care patients.
Emergency Rooms & Operating Theaters – Reliable real-time data for medical interventions.
Ambulances & Transport – Portable design for patient monitoring in transit
Display: 10.4-inch widescreen (16:9) TFT color LCD with an ultra-wide viewing angle, capable of displaying up to six waveforms simultaneously.
Monitoring Parameters:
ECG (Electrocardiogram) – 3/5-lead ECG monitoring with detection of 12 types of arrhythmias.
SpO₂ (Oxygen Saturation) – Measures blood oxygen levels with high precision.
NIBP (Non-Invasive Blood Pressure) – Automated Oscillo metric method for accurate blood pressure readings.
IBP (Invasive Blood Pressure, 2 channels) – For direct arterial and venous pressure measurement.
Respiration (RESP) – Derived from the ECG leads to detect respiratory rate.
Temperature (2 channels) – Dual temperature probes for continuous body temperature monitoring.
EtCO₂ (End-Tidal Carbon Dioxide, optional) – Capnography monitoring via side stream module.
Alarm System: Visual and audible alarms for critical parameter deviations.
Arrhythmia Detection: Detects 12 types of arrhythmias, displays premature ventricular contractions (PVC) count, and monitors ST-segment levels for cardiac conditions.
User Interface: Intuitive and user-friendly menu with touchscreen or button navigation for easy operation.
Printing: Optional built-in thermal printer for real-time waveform and trend reports.
Connectivity: Multiple connectivity options, including USB, LAN, and Wi-Fi (optional) for data transfer and integration with hospital networks.
Battery Backup: Rechargeable lithium-ion battery with approximately 3 hours of continuous operation on a full charge.
Applications
Hospital Wards & ICUs – Continuous vital sign monitoring for critical care patients.
Emergency Rooms & Operating Theaters – Reliable real-time data for medical interventions.
Ambulances & Transport – Portable design for patient monitoring in transit
